Studding Outlet
Studding Outlet

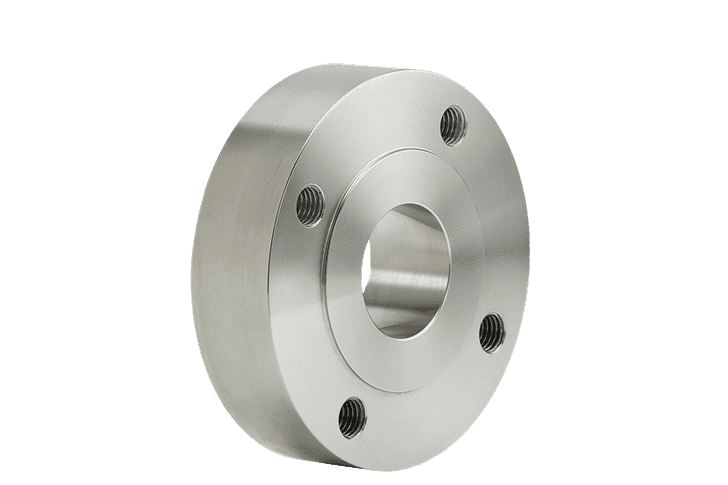

Studding Outlet Flanges are usually designed to be installed in the inside or outside of vessels and tanks. These are made to order items offered in a variety of configurations. The most commonly used studding outlet flange in the industry is the flat bottom type. We also offer them in a head mount in order to set the flanges flush with your vessel.
Dimensions
- B16.5 (unless otherwise stated)
- ½” – 24″
- 150# – 2500#
Flat Bottom or Head Mount Available
Furnished to B16.5 specifications unless otherwise stated
Primary Alloys Inventoried
- Hastelloy – C276, B3, C22, C-2000, G-30, 230
- Alloy 20, 200/201, 400, 600, 601, 625, 800HT, 825
- AL6XN (N08367), 904L, 310, 317L, 321, 347
- Duplex Stainless – 2205, 2507, 255
- Titanium – Grades 2, 7, and 12
- Aluminum Grades – 1100, 3003, 6061 and 5083
- Chromes-Moly – F-5, F-9, F-11 and F-22
Other material available upon request
ISO 9001:2015, PED 2014/68/EU, Canadian Registration Numbers (CRN’s: Nuclear and Non-Nuclear), AIS, NCA3800, 10CFR50, 10CFR21, CSA N285.0, CSA B51, NQA-1, EB2678, MIL-I-45208A, DFARS, NACE, EN 10204 3.1
